3,999.00£
Experience the next level of precision curing with the THC2 Graphy Tera Harz Cure, designed for high-performance dental applications. Engineered with powerful UV energy and optimized irradiance, this nitrogen-based curing unit ensures rapid polymerization, enhanced mechanical properties, and a natural tooth-like finish every time.
Experience the next level of precision curing with the THC2 Graphy Tera Harz Cure, designed for high-performance dental applications. Engineered with powerful UV energy and optimized irradiance, this nitrogen-based curing unit ensures rapid polymerization, enhanced mechanical properties, and a natural tooth-like finish every time.
Perfect for professionals who demand speed, strength, and shade accuracy in every print, the THC2 delivers superior flexural and tensile strength while preserving aesthetic excellence.
Adjustable UV Power (Levels 1–5): Customize your curing intensity and duration to ensure ideal chemical reactions and full photopolymerization.
Optimized LED Arrangement: High-power UV LEDs are strategically positioned on the top and sides for consistent and thorough curing coverage.
User-Friendly Touchscreen: A vibrant 7.9” touchscreen interface offers intuitive control and real-time monitoring.
Memory Function: Save up to 4 personalized curing modes for streamlined workflow and consistent results.
Safety System: Built-in Auto Power-Off function ensures safe operation and energy efficiency.
Diagnostic Function: Includes a Light Uniformity Test to verify optimal curing conditions and system performance.
Whether you’re producing clear aligners, crowns, or any high-precision dental appliance, the Graphy THC2 sets a new standard in light-curing technology. Ideal for dental labs and clinics seeking consistent quality and productivity.

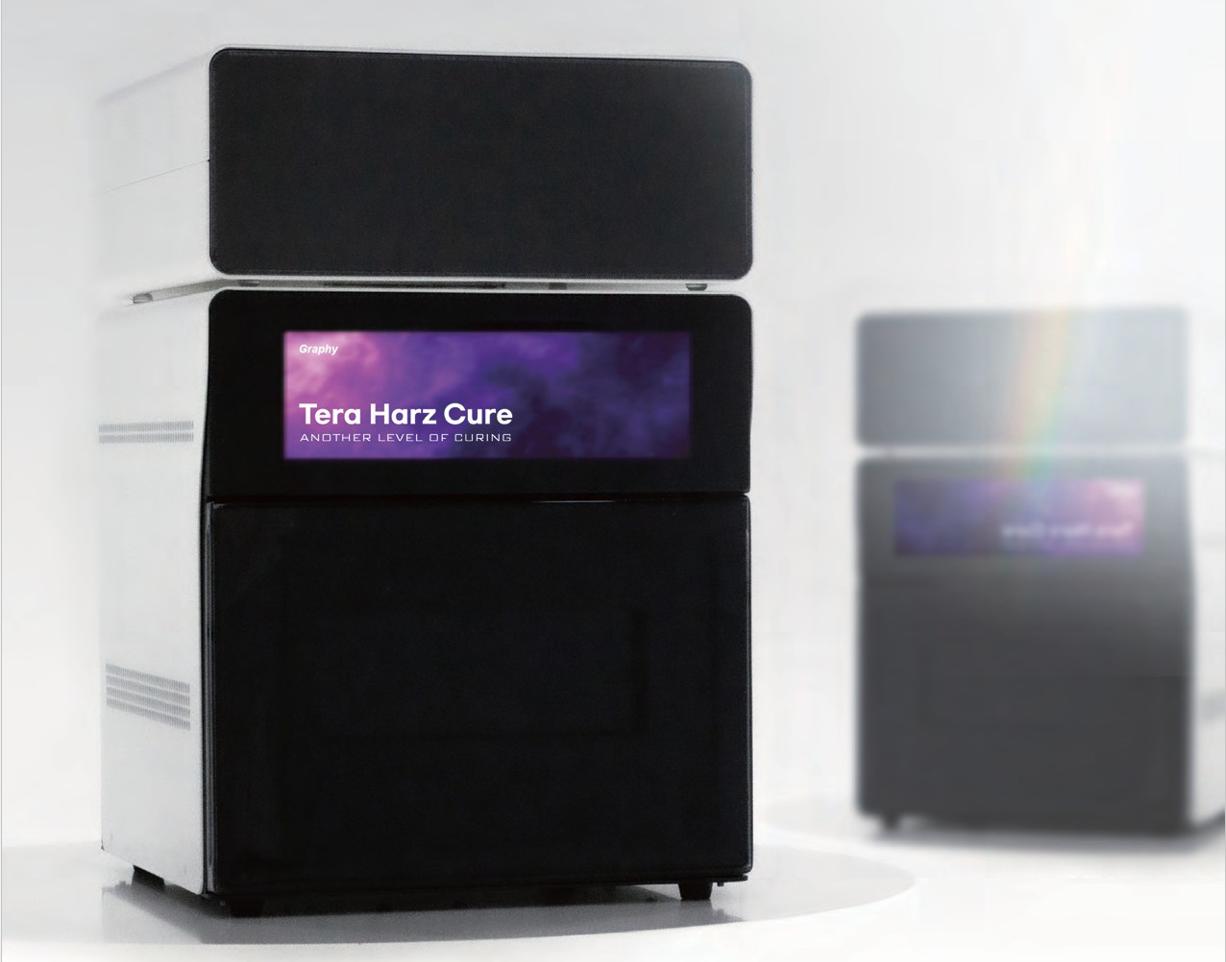

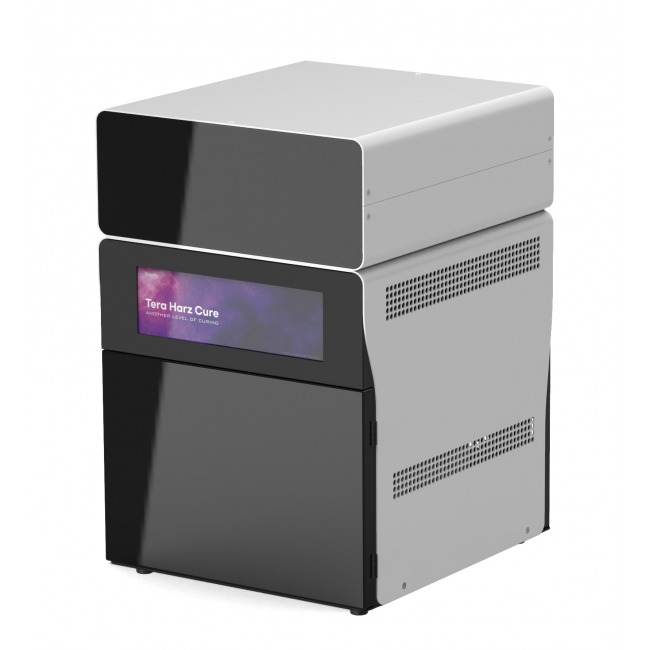

THC2 Graphy Tera Harz Cure Advanced Nitrogen UV Curing Unit
Light Source: High-Power UV LED
UV Wavelength: 405 nm
Input Voltage: 100–240V AC | 50–60 Hz
LED Power Output: 200W
UV Energy Density: 280,000 mJ/cm² (within 5 minutes)
Irradiance: 1,000 mW/cm²
Curing Chamber Dimensions: Ø180 x 65 mm
Unit Dimensions (W x D x H): 275 x 310 x 310 mm
Net Weight: 9 kg
If you need expert advice and laboratory services for your upcoming research, check out Dentinova Research Hub
Top Scientific Benefits That Set It Apart
The Tera Harz Cure is engineered for high-performance dental and orthodontic applications, especially the production of clear aligners using Graphy’s advanced photopolymer resins. Here’s why it outperforms conventional curing systems:
???? 1. Optimized Material Performance
Specifically designed to work seamlessly with Graphy’s photo-curable resins, the Tera Harz Cure ensures maximum polymerization, resulting in enhanced mechanical strength, chemical stability, and long-term dimensional accuracy.
???? 2. Unmatched UV Light Output
With the highest irradiance in its class, the Tera Harz Cure delivers consistent, high-intensity light from both top and side LEDs. This guarantees precise curing and reduces the chances of incomplete polymerization, even in hard-to-reach areas.
Graphy Tera Harz TA-28 Shape Memory Aligner resin
???? 3. Controlled Nitrogen Atmosphere
By creating a stable nitrogen-rich environment, this curing unit significantly reduces oxygen inhibition, promoting deeper, more uniform curing and smoother surface quality. The result is a cleaner finish with fewer post-processing steps.
???? 4. Enhanced Mechanical Properties
Nitrogen curing not only improves polymer crosslinking but also enhances the final product’s durability, wear resistance, and load-bearing capacity—making it ideal for the demanding use of orthodontic aligners.
Graphy Tera Harz TA-28 Shape Memory Aligner resin
<embed]https://store.dentinova.co.uk/product/dlp-sla-lcd-senertek-ibt-resin-for-dental-3d-printers-0-5l/[/embed]
???? 5. Time & Energy Efficiency
Tera Harz Cure is optimized to deliver rapid curing cycles without sacrificing quality. Its energy-efficient design helps laboratories and clinics boost productivity while minimizing operational costs.
Whether you’re running a dental lab or an orthodontic clinic, Graphy’s Tera Harz Cure empowers you to produce aligners with clinical-grade strength, aesthetics, and speed—backed by the latest in curing technology.
